The Horse Barn
Run Ins, Stalls, Tack Rooms, and Feeders that will meet the needs for your large animals.
• Customize a structure to meet your individual needs
• Offers the strength in construction to provide years of service
• Protection and security for your valuable large animals
Description:
Our Horse Barn Sheds can satisfy the serious needs for large animal care. Many sizes and options will allow you to design the building(s) to accommodate the care you want.
Combine a run in with a tack room or stall with tack room. Add hay and water/grain feeders to provide indoor care. Separate Hay Feeder structures will allow all day feeding in the pasture.
Insulate your building for winter protection. Partitions can be made permanent or removable for flexibility. Many options for many needs for the husbandry enthusiast!
Included Features:
Foundations are made of 6”x6” pressure treated skid
All sheds constructed of 3 ½”x3 ½’ and 2’x3 ½’ oak
Siding consists of 1x10 white pine board and batten
Interior kickboards built of 1”x8” oak or 2”x8” tongue and groove southern yellow pine
Roofs consist of 2”x4” spruce rafters, ½” standard sheathing and 30 year asphalt shingles
Each stall has 1 Dutch door and 1 window/grill
Each tack room has 1 door and 1 window
Run-In Sizes are:
8’ wide x 8’, 10’, and 12’ long
8’ 10’ wide x 10’, 12’, 14’, 16’, 18’, 18’, 20’, 24’, 28’, 30’, 32’, 36’, and 40’ long
12’ wide x 12’, 14’, 16’, 18’, 20’, 24’, 28’, 30’, 32’, 36’, and 40’ long
Run-In With Tack Room Size:
10’ and 12’ wide x 16’, 18’, 20’, 22’, 24’, 28’, 30’, 32’, 36’, and 40’ long
Stall With Tack Room Size:
10’ and 12’ wide x 12’, 14’, 16’ 18’ 20’, 22’, 24’, 28’, 30’, 32’, 36’, and 40’ long
Hay Feeder Size:
Hay Feeder 6’ x 6’, 6’ x 8’, and 6’ x 10’
The Horse Barn or Run-In Shed
Board and Batton Sheds--Built to last and perform for your animal's needs 10 x 18

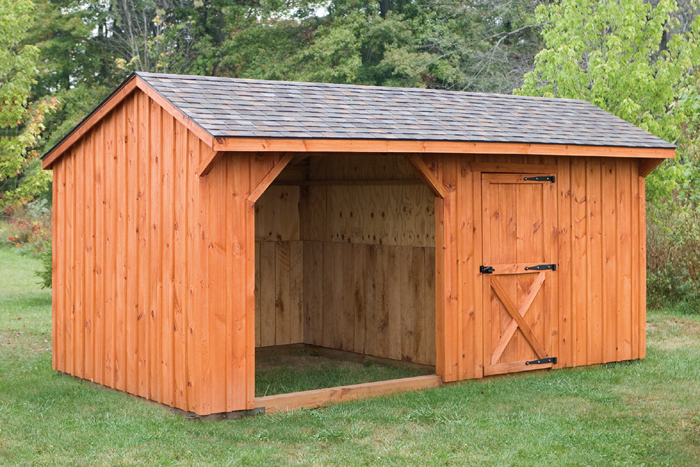

Run-In with Tackroom 10 x 20

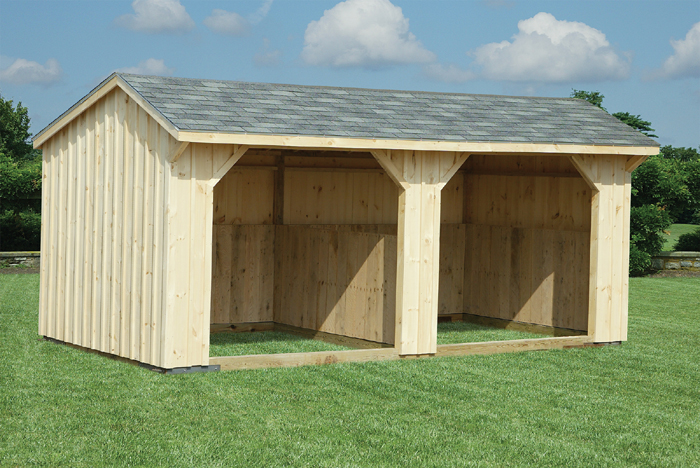

Unfinished Pine Double Run-In 12x20
Tack and Stall
A paddock and stall area 12x40 shed row
Providing stall space for your pasture 12x36 shed row
Hay feeder
